UCF216

Ondrives Precision Gears and Gearboxes Part number UCF216

UCF216

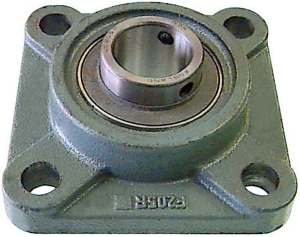

Cast Iron Square Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCF216 Ondrives Precision Gears and Gearboxes Part number UCF216

Product specifications

Shaft Diameter80
Dimension [L]208
Dimension [J]165
Dimension [A2]34
Dimension [A1]22
Dimension [A]58
Dimension [N]23
Dimension [A3]83.3
Dimension [B]82.6
Dimension [S]33.3
Bolt SizeM20
Dynamic Load Rating [N]72500
Static Load Rating [N]53000
Mass [kg]7.9
