UCF215

Ondrives Precision Gears and Gearboxes Part number UCF215

UCF215

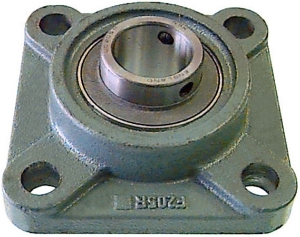

Cast Iron Square Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCF215 Ondrives Precision Gears and Gearboxes Part number UCF215

Product specifications

Shaft Diameter75
Dimension [L]200
Dimension [J]159
Dimension [A2]34
Dimension [A1]22
Dimension [A]56
Dimension [N]19
Dimension [A3]78.5
Dimension [B]77.8
Dimension [S]33.3
Bolt SizeM16
Dynamic Load Rating [N]66000
Static Load Rating [N]49500
Mass [kg]6.6

Product specifications

Shaft Diameter75
Dimension [L]200
Dimension [J]159
Dimension [A2]34
Dimension [A1]22
Dimension [A]56
Dimension [N]19
Dimension [A3]78.5
Dimension [B]77.8
Dimension [S]33.3
Bolt SizeM16
Dynamic Load Rating [N]66000
Static Load Rating [N]49500
Mass [kg]6.6
