UCF214

Ondrives Precision Gears and Gearboxes Part number UCF214

UCF214

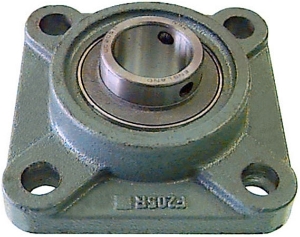

Cast Iron Square Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCF214 Ondrives Precision Gears and Gearboxes Part number UCF214

Product specifications

Shaft Diameter70
Dimension [L]193
Dimension [J]152
Dimension [A2]31
Dimension [A1]22
Dimension [A]54
Dimension [N]19
Dimension [A3]75.4
Dimension [B]74.6
Dimension [S]30.2
Bolt SizeM16
Dynamic Load Rating [N]62000
Static Load Rating [N]44000
Mass [kg]6.3

Product specifications

Shaft Diameter70
Dimension [L]193
Dimension [J]152
Dimension [A2]31
Dimension [A1]22
Dimension [A]54
Dimension [N]19
Dimension [A3]75.4
Dimension [B]74.6
Dimension [S]30.2
Bolt SizeM16
Dynamic Load Rating [N]62000
Static Load Rating [N]44000
Mass [kg]6.3
