UCF212

Ondrives Precision Gears and Gearboxes Part number UCF212

UCF212

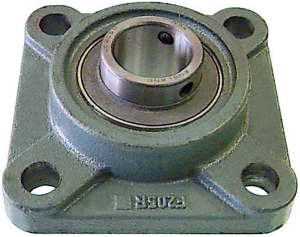

Cast Iron Square Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCF212 Ondrives Precision Gears and Gearboxes Part number UCF212

Product specifications

Shaft Diameter60
Dimension [L]175
Dimension [J]143
Dimension [A2]29
Dimension [A1]18
Dimension [A]48
Dimension [N]19
Dimension [A3]68.7
Dimension [B]65.1
Dimension [S]25.4
Bolt SizeM16
Dynamic Load Rating [N]52500
Static Load Rating [N]36000
Mass [kg]3.9

Product specifications

Shaft Diameter60
Dimension [L]175
Dimension [J]143
Dimension [A2]29
Dimension [A1]18
Dimension [A]48
Dimension [N]19
Dimension [A3]68.7
Dimension [B]65.1
Dimension [S]25.4
Bolt SizeM16
Dynamic Load Rating [N]52500
Static Load Rating [N]36000
Mass [kg]3.9
