UCF210

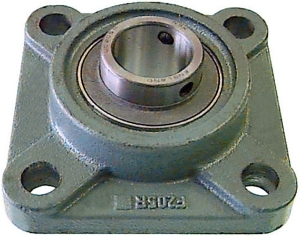

Ondrives Precision Gears and Gearboxes Part number UCF210

UCF210

Cast Iron Square Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCF210 Ondrives Precision Gears and Gearboxes Part number UCF210

Product specifications

Shaft Diameter50
Dimension [L]143
Dimension [J]111
Dimension [A2]22
Dimension [A1]16
Dimension [A]40
Dimension [N]16
Dimension [A3]54.6
Dimension [B]51.6
Dimension [S]19
Bolt SizeM14
Dynamic Load Rating [N]35000
Static Load Rating [N]23200
Mass [kg]2.5
