UCF208

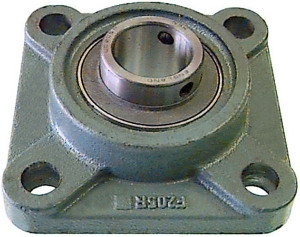

Ondrives Precision Gears and Gearboxes Part number UCF208

UCF208

Cast Iron Square Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCF208 Ondrives Precision Gears and Gearboxes Part number UCF208

Product specifications

Shaft Diameter40
Dimension [L]130
Dimension [J]102
Dimension [A2]21
Dimension [A1]15
Dimension [A]36
Dimension [N]16
Dimension [A3]51.2
Dimension [B]49.2
Dimension [S]19
Bolt SizeM14
Dynamic Load Rating [N]29100
Static Load Rating [N]17900
Mass [kg]1.7

Product specifications

Shaft Diameter40
Dimension [L]130
Dimension [J]102
Dimension [A2]21
Dimension [A1]15
Dimension [A]36
Dimension [N]16
Dimension [A3]51.2
Dimension [B]49.2
Dimension [S]19
Bolt SizeM14
Dynamic Load Rating [N]29100
Static Load Rating [N]17900
Mass [kg]1.7
