UCF206

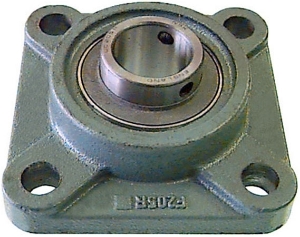

Ondrives Precision Gears and Gearboxes Part number UCF206

UCF206

Cast Iron Square Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCF206 Ondrives Precision Gears and Gearboxes Part number UCF206

Product specifications

Shaft Diameter30
Dimension [L]108
Dimension [J]83
Dimension [A2]18
Dimension [A1]13
Dimension [A]31
Dimension [N]12
Dimension [A3]40.2
Dimension [B]38.1
Dimension [S]15.9
Bolt SizeM10
Dynamic Load Rating [N]19500
Static Load Rating [N]11300
Mass [kg]1.1

Product specifications

Shaft Diameter30
Dimension [L]108
Dimension [J]83
Dimension [A2]18
Dimension [A1]13
Dimension [A]31
Dimension [N]12
Dimension [A3]40.2
Dimension [B]38.1
Dimension [S]15.9
Bolt SizeM10
Dynamic Load Rating [N]19500
Static Load Rating [N]11300
Mass [kg]1.1
