UCF202

Ondrives Precision Gears and Gearboxes Part number UCF202

UCF202

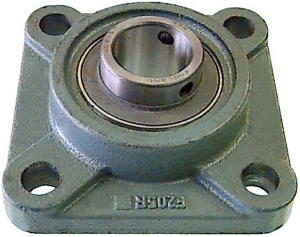

Cast Iron Square Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCF202 Ondrives Precision Gears and Gearboxes Part number UCF202

Product specifications

Shaft Diameter15
Dimension [L]86
Dimension [J]64
Dimension [A2]15
Dimension [A1]11
Dimension [A]25.5
Dimension [N]12
Dimension [A3]33.3
Dimension [B]31
Dimension [S]12.7
Bolt SizeM10
Dynamic Load Rating [N]12800
Static Load Rating [N]6600
Mass [kg]0.6

Product specifications

Shaft Diameter15
Dimension [L]86
Dimension [J]64
Dimension [A2]15
Dimension [A1]11
Dimension [A]25.5
Dimension [N]12
Dimension [A3]33.3
Dimension [B]31
Dimension [S]12.7
Bolt SizeM10
Dynamic Load Rating [N]12800
Static Load Rating [N]6600
Mass [kg]0.6
