FFS50-XH-3AR-20

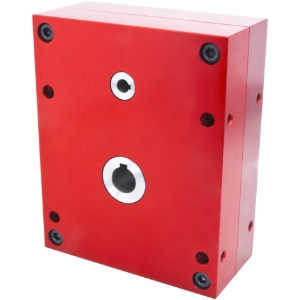

Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FFS50-XH-3AR-20

Hardened parallel gears, ≤5' backlash, 20mm flush bore input, 30mm flush bore output, 312Nm-800Nm output torque, ratio 3:1
Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

TorqueHigh
Gear Ratio [i=]3:1
Centre Dist. [a]117.00
Input Bore Ø20
Nom Output Torque T₂n [Nm]336
Output Backlash j≤0.08°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]26.59
Max. Input Radial Load Fr1 N400
Max. Output Radial Load Fr2 N1000
Max. Output Axial Load Fa2 N600
Lubrication GreaseShell Gadus S5 V42P 2.5
