FFS30-3AR-9

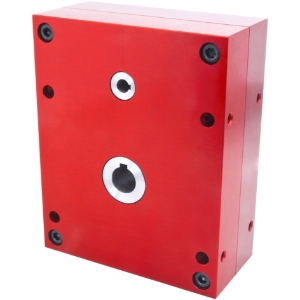

Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FFS30-3AR-9

Parallel gears, ≤5' backlash, 9mm flush bore input, 20mm flush bore output, 29.1Nm-72.7Nm output torque, ratio 3:1
Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer bore input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

TorqueNormal
Gear Ratio [i=]3:1
Centre Dist. [a]67.30
Input Bore Ø9
Nom Output Torque T₂n [Nm]34.4
Output Backlash j≤0.08°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]5.5
Max. Input Radial Load Fr1 N200
Max. Output Radial Load Fr2 N600
Max. Output Axial Load Fa2 N400
Lubrication GreaseShell Gadus S5 V42P 2.5
