SPLW31.75-11

sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer

SPLW31.75-11

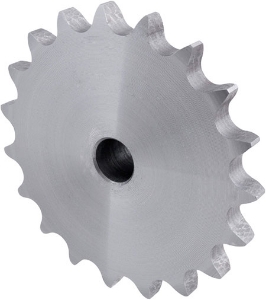

Plain C43 UNI 7847 Carbon Steel Simplex Sprockets, 1 1/4" (31.75mm) Pitch (ISO 20B-1), 3/4" (19.05mm) Roller Diameter
sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer sprocket for use with chains Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.20B-1
Pitch/Lead31.75
No. of Teeth [z]11
Tip Diameter [de]127
Ref. Diameter [dp]112.68
Bore Diameter [di]20
Mass [kg]1.13

Product specifications

MaterialC43 UNI 7847 Carbon Steel
ISO No.20B-1
Pitch/Lead31.75
No. of Teeth [z]11
Tip Diameter [de]127
Ref. Diameter [dp]112.68
Bore Diameter [di]20
Mass [kg]1.13
