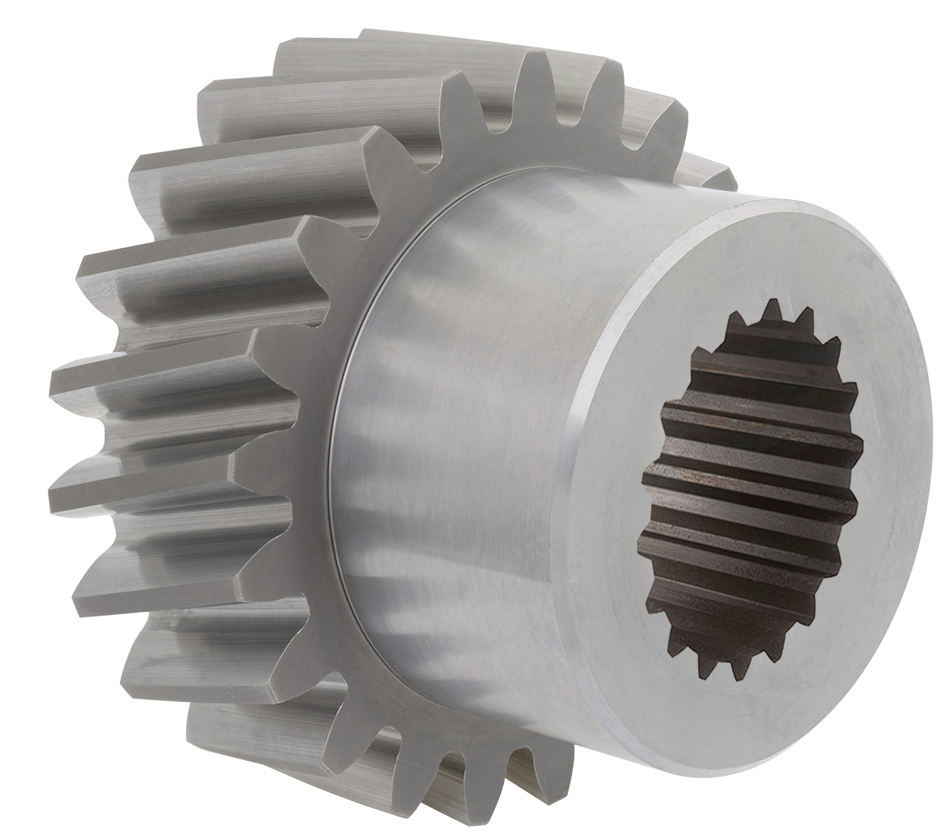

Splined Bore Helical Gears
| Sku (Part No.) | Normal Module mn | No. of Teeth [z] | Torque T₂ [Nm] n1 500 r/min | Helix Direction | Spline Din 5480 Gears | Material |
|---|---|---|---|---|---|---|
| UPHGS2.0-28RH | 2 | 28 | 169.55 | Right Hand | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-29RH | 2 | 29 | 183.30 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-30RH | 2 | 30 | 197.52 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-32RH | 2 | 32 | 227.65 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-35RH | 2 | 35 | 277.05 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-38RH | 2 | 38 | 331.60 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-40RH | 2 | 40 | 367.56 | Right Hand | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-42RH | 2 | 42 | 387.27 | Right Hand | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-45RH | 2 | 45 | 416.60 | Right Hand | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-48RH | 2 | 48 | 445.60 | Right Hand | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-50RH | 2 | 50 | 464.74 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-52RH | 2 | 52 | 483.77 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-55RH | 2 | 55 | 512.07 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-58RH | 2 | 58 | 540.05 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-60RH | 2 | 60 | 558.55 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-62RH | 2 | 62 | 576.60 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-65RH | 2 | 65 | 603.90 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-68RH | 2 | 68 | 630.85 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-70RH | 2 | 70 | 648.70 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-72RH | 2 | 72 | 666.40 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-28RPH | 2 | 28 | 135.64 | Right Hand | N20x1.25x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-29RPH | 2 | 29 | 146.64 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-30RPH | 2 | 30 | 158.02 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-32RPH | 2 | 32 | 182.12 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-35RPH | 2 | 35 | 221.64 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-38RPH | 2 | 38 | 265.28 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-40RPH | 2 | 40 | 294.05 | Right Hand | N30x1.25x30x22x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-42RPH | 2 | 42 | 309.82 | Right Hand | N30x1.25x30x22x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-45RPH | 2 | 45 | 333.28 | Right Hand | N30x1.25x30x22x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-48RPH | 2 | 48 | 356.48 | Right Hand | N30x1.25x30x22x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-50RPH | 2 | 50 | 371.79 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-52RPH | 2 | 52 | N/A | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-55RPH | 2 | 55 | 409.66 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-58RPH | 2 | 58 | 432.04 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-60RPH | 2 | 60 | 446.84 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-62RPH | 2 | 62 | 461.28 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-65RPH | 2 | 65 | 483.12 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-68RPH | 2 | 68 | 504.68 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-70RPH | 2 | 70 | 518.96 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-72RPH | 2 | 72 | 533.12 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-24RH | 2.5 | 24 | 238.47 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-25RH | 2.5 | 25 | 262.50 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-26RH | 2.5 | 26 | 286.30 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-27RH | 2.5 | 27 | 311.25 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-28RH | 2.5 | 28 | 337.30 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-29RH | 2.5 | 29 | 364.45 | Right Hand | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-30RH | 2.5 | 30 | 392.75 | Right Hand | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-32RH | 2.5 | 32 | 452.60 | Right Hand | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-35RH | 2.5 | 35 | 551 | Right Hand | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-38RH | 2.5 | 38 | 659.50 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-40RH | 2.5 | 40 | 716.50 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-42RH | 2.5 | 42 | 754.75 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-45RH | 2.5 | 45 | 811.70 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-48RH | 2.5 | 48 | 867.90 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-50RH | 2.5 | 50 | 905.05 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-52RH | 2.5 | 52 | 941.90 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-55RH | 2.5 | 55 | 996.65 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-58RH | 2.5 | 58 | 1050.75 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-24RPH | 2.5 | 24 | 190.78 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-25RPH | 2.5 | 25 | 210 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-26RPH | 2.5 | 26 | 229.04 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-27RPH | 2.5 | 27 | 249 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-28RPH | 2.5 | 28 | 269.84 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-29RPH | 2.5 | 29 | 291.56 | Right Hand | N35x2.00x30x16x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-30RPH | 2.5 | 30 | 314.20 | Right Hand | N35x2.00x30x16x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-32RPH | 2.5 | 32 | 362.08 | Right Hand | N35x2.00x30x16x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-35RPH | 2.5 | 35 | 440.80 | Right Hand | N35x2.00x30x16x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-38RPH | 2.5 | 38 | 527.60 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-40RPH | 2.5 | 40 | 573.20 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-42RPH | 2.5 | 42 | 603.80 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-45RPH | 2.5 | 45 | 649.36 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-48RPH | 2.5 | 48 | 694.32 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-50RPH | 2.5 | 50 | 724.04 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-52RPH | 2.5 | 52 | 753.52 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-55RPH | 2.5 | 55 | 797.32 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-58RPH | 2.5 | 58 | 840.60 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-20RH | 3 | 20 | 277.10 | Right Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-22RH | 3 | 22 | 277.14 | Right Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-23RH | 3 | 23 | 382.50 | Right Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-24RH | 3 | 24 | 420.50 | Right Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-25RH | 3 | 25 | 460.45 | Right Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-26RH | 3 | 26 | 502.30 | Right Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-27RH | 3 | 27 | 546.10 | Right Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-28RH | 3 | 28 | 591.8 | Right Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-29RH | 3 | 29 | 639.5 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-30RH | 3 | 30 | 689.20 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-32RH | 3 | 32 | 794.30 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-35RH | 3 | 35 | 967 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-38RH | 3 | 38 | 1157.50 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-40RH | 3 | 40 | 1236.40 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-42RH | 3 | 42 | 1302.30 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-45RH | 3 | 45 | 1400.30 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-48RH | 3 | 48 | 1497 | Right Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-20RPH | 3 | 20 | 221.68 | Right Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-22RPH | 3 | 22 | 277.14 | Right Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-23RPH | 3 | 23 | 306 | Right Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-24RPH | 3 | 24 | 336.40 | Right Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-25RPH | 3 | 25 | 368.36 | Right Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-26RPH | 3 | 26 | 401.84 | Right Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-27RPH | 3 | 27 | 436.88 | Right Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-28RPH | 3 | 28 | 473.44 | Right Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-29RPH | 3 | 29 | 511.60 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-30RPH | 3 | 30 | 551.36 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-32RPH | 3 | 32 | 635.44 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-35RPH | 3 | 35 | 773.60 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-38RPH | 3 | 38 | 926 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-40RPH | 3 | 40 | 989.12 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-42RPH | 3 | 42 | 1041.84 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-45RPH | 3 | 45 | 1120.24 | Right Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-48RPH | 3 | 48 | 1197.60 | Right Hand | N/A | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-28LH | 2 | 28 | 169.55 | Left Hand | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-29LH | 2 | 29 | 183.30 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-30LH | 2 | 30 | 197.52 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-32LH | 2 | 32 | 227.65 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-35LH | 2 | 35 | 277.05 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-38LH | 2 | 38 | 331.60 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-40LH | 2 | 40 | 367.56 | Left Hand | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-42LH | 2 | 42 | 387.27 | Left Hand | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-45LH | 2 | 45 | 416.60 | Left Hand | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-48LH | 2 | 48 | 445.60 | Left Hand | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-50LH | 2 | 50 | 464.74 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-52LH | 2 | 52 | 483.77 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-55LH | 2 | 55 | 512.07 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-58LH | 2 | 58 | 540.05 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-60LH | 2 | 60 | 558.55 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-62LH | 2 | 62 | 576.60 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-65LH | 2 | 65 | 603.90 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-68LH | 2 | 68 | 630.85 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-70LH | 2 | 70 | 648.70 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-72LH | 2 | 72 | 666.40 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.0-28LPH | 2 | 28 | 135.64 | Left Hand | N20x1.25x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-29LPH | 2 | 29 | 146.64 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-30LPH | 2 | 30 | 158.02 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-32LPH | 2 | 32 | 182.12 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-35LPH | 2 | 35 | 221.64 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-38LPH | 2 | 38 | 265.28 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-40LPH | 2 | 40 | 294.05 | Left Hand | N30x1.25x30x22x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-42LPH | 2 | 42 | 309.82 | Left Hand | N30x1.25x30x22x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-45LPH | 2 | 45 | 333.28 | Left Hand | N30x1.25x30x22x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-48LPH | 2 | 48 | 356.48 | Left Hand | N30x1.25x30x22x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-50LPH | 2 | 50 | 371.79 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-52LPH | 2 | 52 | 387.02 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-55LPH | 2 | 55 | 409.66 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-58LPH | 2 | 58 | 432.04 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-60LPH | 2 | 60 | 446.84 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-62LPH | 2 | 62 | 461.28 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-65LPH | 2 | 65 | 483.12 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-68LPH | 2 | 68 | 504.68 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-70LPH | 2 | N/A | 518.96 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.0-72LPH | 2 | 72 | 533.12 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-24LH | 2.5 | 24 | 238.47 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-25LH | 2.5 | 25 | 262.50 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-26LH | 2.5 | 26 | 286.30 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-27LH | 2.5 | 27 | 311.25 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-28LH | 2.5 | 28 | 337.30 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-29LH | 2.5 | 29 | 364.45 | Left Hand | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-30LH | 2.5 | 30 | 392.75 | Left Hand | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-32LH | 2.5 | 32 | 452.60 | Left Hand | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-35LH | 2.5 | 35 | 551 | Left Hand | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-38LH | 2.5 | 38 | 659.50 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-40LH | 2.5 | 40 | 716.50 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-42LH | 2.5 | 42 | 754.75 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-45LH | 2.5 | 45 | 811.70 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-48LH | 2.5 | 48 | 867.90 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-50LH | 2.5 | 50 | 905.05 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-52LH | 2.5 | 52 | 941.90 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-55LH | 2.5 | 55 | 996.65 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-58LH | 2.5 | 58 | 1050.75 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS2.5-24LPH | 2.5 | 24 | 190.78 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-25LPH | 2.5 | 25 | 210 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-26LPH | 2.5 | 26 | 229.04 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-27LPH | 2.5 | 27 | 249 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-28LPH | 2.5 | 28 | 269.84 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-29LPH | 2.5 | 29 | 291.56 | Left Hand | N35x2.00x30x16x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-30LPH | 2.5 | 30 | 314.20 | Left Hand | N35x2.00x30x16x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-32LPH | 2.5 | 32 | 362.08 | Left Hand | N35x2.00x30x16x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-35LPH | 2.5 | 35 | 440.80 | Left Hand | N35x2.00x30x16x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-38LPH | 2.5 | 38 | 527.60 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-40LPH | 2.5 | 40 | 573.20 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-42LPH | 2.5 | 42 | 603.80 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-45LPH | 2.5 | 45 | 649.36 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-48LPH | 2.5 | 48 | 694.32 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-50LPH | 2.5 | 50 | 724.04 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-52LPH | 2.5 | 52 | 753.52 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-55LPH | 2.5 | 55 | 797.32 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS2.5-58LPH | 2.5 | 58 | 840.60 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-20LH | 3 | 20 | 277.10 | Left Hand | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-22LH | 3 | 22 | 346.43 | Left Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-23LH | 3 | 23 | 382.50 | Left Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-24LH | 3 | 24 | 420.50 | Left Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-25LH | 3 | 25 | 460.45 | Left Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-26LH | 3 | 26 | 502.30 | Left Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-27LH | 3 | 27 | 546.10 | Left Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-28LH | 3 | 28 | 591.8 | Left Hand | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-29LH | 3 | 29 | 639.5 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-30LH | 3 | 30 | 689.20 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-32LH | 3 | 32 | 794.30 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-35LH | 3 | 35 | 967 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-38LH | 3 | 38 | 1157.50 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-40LH | 3 | 40 | 1236.40 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-42LH | 3 | 42 | 1302.30 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-45LH | 3 | 45 | 1400.30 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-48LH | 3 | 48 | 1497 | Left Hand | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| UPHGS3.0-20LPH | 3 | 20 | 221.68 | Left Hand | N25x1.25x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-22LPH | 3 | 22 | 346.43 | Left Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-23LPH | 3 | 23 | 306 | Left Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-24LPH | 3 | 24 | 336.40 | Left Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-25LPH | 3 | 25 | 368.36 | Left Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-26LPH | 3 | 26 | 401.84 | Left Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-27LPH | 3 | 27 | 436.88 | Left Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-28LPH | 3 | 28 | 473.44 | Left Hand | N32x2.00x30x14x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-29LPH | 3 | N/A | 511.60 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-30LPH | 3 | 30 | 551.36 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-32LPH | 3 | 32 | 635.44 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-35LPH | 3 | 35 | 773.60 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-38LPH | 3 | 38 | 926 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-40LPH | 3 | 40 | 989.12 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-42LPH | 3 | 42 | 1041.84 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-45LPH | 3 | 45 | 1120.24 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
| UPHGS3.0-48LPH | 3 | 48 | 1197.60 | Left Hand | N40x2.00x30x18x9H | 17-4PH (EN1.4542 AISI 630) Stainless Steel H1025 |
