SBC-140-K-1

SBC-140-K-1

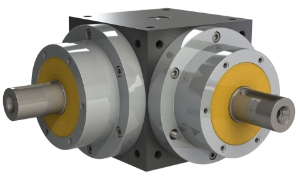

•1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Single Output Shaft • IP64

Product specifications

Gear Ratio [i=]1:1
Output Torque T₂max [Nm]350
Nom Output Torque T₂n [Nm]250
Nom. Input Speed S5 T₂n [n1nom]1000 min-1 (r/min)
Max. Input Speed [n1max]3500 min-1 (r/min)
Output Backlash j≤0.16°
Efficiency n1nom [ηz]≈98%
Reflected Inertia at Input (kg•m²)2.02x10-3
Mass [kg]15.188
Max. Input Radial Load Fr1 N3000
Max. Output Radial Load Fr2 N3000
Max. Input Axial Load Fa1 N1750
Max. Output Axial Load Fa2 N1750
Lubrication OilKlubersynth GH 6-220
Max. Operating Temp of Lub≈95°C
Thermal Rating S1 Pthermal [kw]9
SealsFluoro-Elastomer FPM ISO 1629 /FKM ASTM D141 H
Ingress ProtectionIP64
Noise Level Low Load≈75dB(A)
