AF30-30/30

Ondrives Precision Gears and Gearboxes Part number AF30-30/30

AF30-30/30

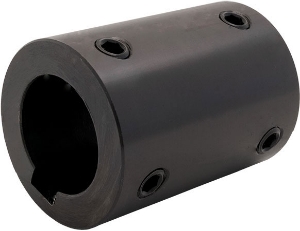

Solid Mild Steel Shaft Coupling, Set Screw Fixing with Keyway
Ondrives Precision Gears and Gearboxes Part number AF30-30/30 Ondrives Precision Gears and Gearboxes Part number AF30-30/30

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)505
Diameter [D]50
Dimension [L]54
Bore Diameter [B] H830
Max. Bore Diameter [B]30
Keyway [BK]8
Bore Diameter [B]30
Keyway [bk]8
Set ScrewM8
Moment of Inertia kg•m²2.21 x 10-4

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)505
Diameter [D]50
Dimension [L]54
Bore Diameter [B] H830
Max. Bore Diameter [B]30
Keyway [BK]8
Bore Diameter [B]30
Keyway [bk]8
Set ScrewM8
Moment of Inertia kg•m²2.21 x 10-4
