AF20-20/20

Ondrives Precision Gears and Gearboxes Part number AF20-20/20

AF20-20/20

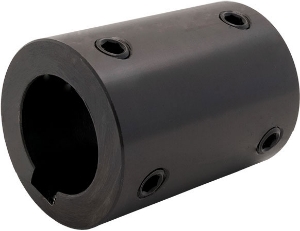

Solid Mild Steel Shaft Coupling, Set Screw Fixing with Keyway
Ondrives Precision Gears and Gearboxes Part number AF20-20/20 Ondrives Precision Gears and Gearboxes Part number AF20-20/20

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)145
Diameter [D]32
Dimension [L]40
Bore Diameter [B] H820
Max. Bore Diameter [B]20.0
Keyway [BK]6
Bore Diameter [B]20
Keyway [bk]6
Set ScrewM6
Moment of Inertia kg•m²2.65 x 10-5

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)145
Diameter [D]32
Dimension [L]40
Bore Diameter [B] H820
Max. Bore Diameter [B]20.0
Keyway [BK]6
Bore Diameter [B]20
Keyway [bk]6
Set ScrewM6
Moment of Inertia kg•m²2.65 x 10-5
