AF15-10/15

Ondrives Precision Gears and Gearboxes Part number AF15-10/15

AF15-10/15

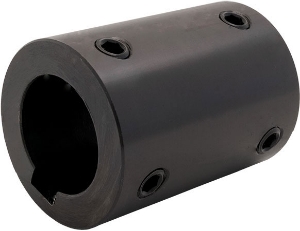

Solid Mild Steel Shaft Coupling, Set Screw Fixing with Keyway
Ondrives Precision Gears and Gearboxes Part number AF15-10/15 Ondrives Precision Gears and Gearboxes Part number AF15-10/15

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)129
Diameter [D]28
Dimension [L]36
Bore Diameter [B]15
Max. Bore Diameter [B]15.0
Keyway [BK]5
Bore Diameter [b] H810
Keyway [bk]3
Set ScrewM5
Moment of Inertia kg•m²1.53 x 10-5

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)129
Diameter [D]28
Dimension [L]36
Bore Diameter [B]15
Max. Bore Diameter [B]15.0
Keyway [BK]5
Bore Diameter [b] H810
Keyway [bk]3
Set ScrewM5
Moment of Inertia kg•m²1.53 x 10-5
