AF12-10/12

Ondrives Precision Gears and Gearboxes Part number AF12-10/12

AF12-10/12

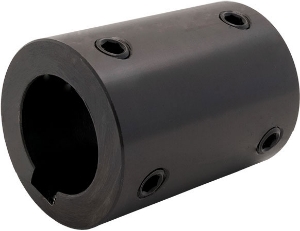

Solid Mild Steel Shaft Coupling, Set Screw Fixing with Keyway
Ondrives Precision Gears and Gearboxes Part number AF12-10/12 Ondrives Precision Gears and Gearboxes Part number AF12-10/12

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)135
Diameter [D]28
Dimension [L]36
Bore Diameter [B]12
Max. Bore Diameter [B]12.0
Keyway [BK]4
Bore Diameter [b] H810
Keyway [bk]3
Set ScrewM5
Moment of Inertia kg•m²1.62 x 10-5

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)135
Diameter [D]28
Dimension [L]36
Bore Diameter [B]12
Max. Bore Diameter [B]12.0
Keyway [BK]4
Bore Diameter [b] H810
Keyway [bk]3
Set ScrewM5
Moment of Inertia kg•m²1.62 x 10-5
