AF10-10/10

Ondrives Precision Gears and Gearboxes Part number AF10-10/10

AF10-10/10

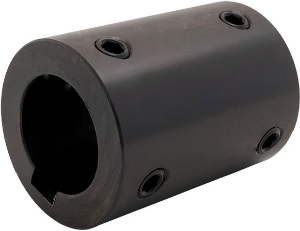

Solid Mild Steel Shaft Coupling, Set Screw Fixing with Keyway
Ondrives Precision Gears and Gearboxes Part number AF10-10/10 Ondrives Precision Gears and Gearboxes Part number AF10-10/10

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)53
Diameter [D]20
Dimension [L]30
Bore Diameter [B]10
Max. Bore Diameter [B]10
Keyway [BK]3
Bore Diameter [b] H810
Keyway [bk]3
Set ScrewM4
Moment of Inertia kg•m²3.39 x 10-6

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)53
Diameter [D]20
Dimension [L]30
Bore Diameter [B]10
Max. Bore Diameter [B]10
Keyway [BK]3
Bore Diameter [b] H810
Keyway [bk]3
Set ScrewM4
Moment of Inertia kg•m²3.39 x 10-6
