CJ8

Ondrives Precision Gears and Gearboxes Part number CJ8

CJ8

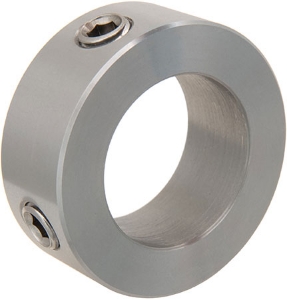

Solid 303 Stainless Steel Shaft Collar, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number CJ8 Ondrives Precision Gears and Gearboxes Part number CJ8

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Coupling ConfigurationSolid
Mass (g)16
Diameter [D]20
Dimension [L]8
Bore Diameter [B]8
Set ScrewM4
Moment of Inertia kg•m²5.75 x 10-7
Static Torque (Nm)12.5
Static Axial Thrust load3000

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Coupling ConfigurationSolid
Mass (g)16
Diameter [D]20
Dimension [L]8
Bore Diameter [B]8
Set ScrewM4
Moment of Inertia kg•m²5.75 x 10-7
Static Torque (Nm)12.5
Static Axial Thrust load3000
