CJ26

Ondrives Precision Gears and Gearboxes Part number CJ26

CJ26

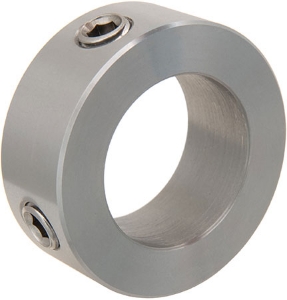

Solid Mild Steel Shaft Collar, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number CJ26 Ondrives Precision Gears and Gearboxes Part number CJ26

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)80
Diameter [D]40
Dimension [L]15
Bore Diameter [B]26
Set ScrewM8
Moment of Inertia kg•m²1.36 x 10-5
Static Torque (Nm)150
Static Axial Thrust load11000

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)80
Diameter [D]40
Dimension [L]15
Bore Diameter [B]26
Set ScrewM8
Moment of Inertia kg•m²1.36 x 10-5
Static Torque (Nm)150
Static Axial Thrust load11000
