CJ25

Ondrives Precision Gears and Gearboxes Part number CJ25

CJ25

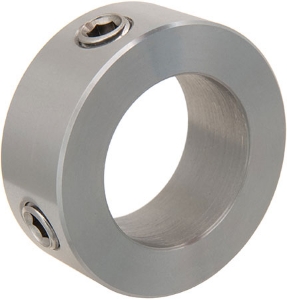

Solid Mild Steel Shaft Collar, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number CJ25 Ondrives Precision Gears and Gearboxes Part number CJ25

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)85
Diameter [D]40
Dimension [L]15
Bore Diameter [B]25
Set ScrewM8
Moment of Inertia kg•m²1.41 x 10-5
Static Torque (Nm)145
Static Axial Thrust load11000

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)85
Diameter [D]40
Dimension [L]15
Bore Diameter [B]25
Set ScrewM8
Moment of Inertia kg•m²1.41 x 10-5
Static Torque (Nm)145
Static Axial Thrust load11000
