CJ24

Ondrives Precision Gears and Gearboxes Part number CJ24

CJ24

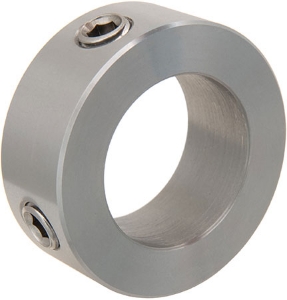

Solid Mild Steel Shaft Collar, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number CJ24 Ondrives Precision Gears and Gearboxes Part number CJ24

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)88
Diameter [D]40
Dimension [L]15
Bore Diameter [B]24
Set ScrewM8
Moment of Inertia kg•m²1.45 x 10-5
Static Torque (Nm)139
Static Axial Thrust load11000

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)88
Diameter [D]40
Dimension [L]15
Bore Diameter [B]24
Set ScrewM8
Moment of Inertia kg•m²1.45 x 10-5
Static Torque (Nm)139
Static Axial Thrust load11000
