CJ22

Ondrives Precision Gears and Gearboxes Part number CJ22

CJ22

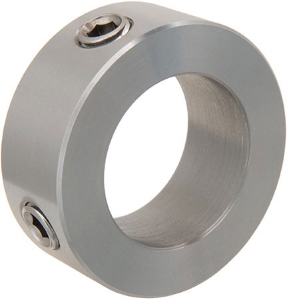

Solid Mild Steel Shaft Collar, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number CJ22 Ondrives Precision Gears and Gearboxes Part number CJ22

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)99
Diameter [D]40
Dimension [L]15
Bore Diameter [B]22
Set ScrewM8
Moment of Inertia kg•m²1.51 x 10-5
Static Torque (Nm)125
Static Axial Thrust load11000

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)99
Diameter [D]40
Dimension [L]15
Bore Diameter [B]22
Set ScrewM8
Moment of Inertia kg•m²1.51 x 10-5
Static Torque (Nm)125
Static Axial Thrust load11000
