CJ200

Ondrives Precision Gears and Gearboxes Part number CJ200

CJ200

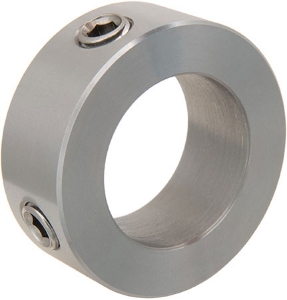

Solid Mild Steel Shaft Collar, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number CJ200 Ondrives Precision Gears and Gearboxes Part number CJ200

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)3285
Diameter [D]250
Dimension [L]24
Bore Diameter [B]200
Set ScrewM12
Moment of Inertia kg•m²21.20 x 10-2
Static Torque (Nm)2660
Static Axial Thrust load26000

Product specifications

MaterialMild Steel
Coupling ConfigurationSolid
Mass (g)3285
Diameter [D]250
Dimension [L]24
Bore Diameter [B]200
Set ScrewM12
Moment of Inertia kg•m²21.20 x 10-2
Static Torque (Nm)2660
Static Axial Thrust load26000
