CJ18

Ondrives Precision Gears and Gearboxes Part number CJ18

CJ18

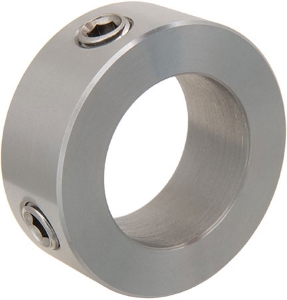

Solid 303 Stainless Steel Shaft Collar, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number CJ18 Ondrives Precision Gears and Gearboxes Part number CJ18

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Coupling ConfigurationSolid
Mass (g)48
Diameter [D]32
Dimension [L]12
Bore Diameter [B]18
Set ScrewM6
Moment of Inertia kg•m²5.09 x 10-6
Static Torque (Nm)60
Static Axial Thrust load6600

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Coupling ConfigurationSolid
Mass (g)48
Diameter [D]32
Dimension [L]12
Bore Diameter [B]18
Set ScrewM6
Moment of Inertia kg•m²5.09 x 10-6
Static Torque (Nm)60
Static Axial Thrust load6600
