51417X
51417X

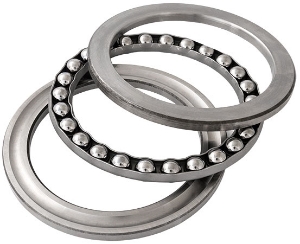

Single Direction Thrust Ball Bearings. 85mm Bore.
Product specifications
Bore Diameter [d]
85
Diameter [A]
177
Bore Diameter [d1]
88
Diameter [A1]
180
Dimension [T]
72
Dimension [r] Min.
2.1
Diameter [da] Min.
141
Diameter [Da] Max.
124
Dimension [ra] Max.
2
Mass [kg]
8.51
Dynamic Load Rating [N]
310000
Static Load Rating [N]
755000
Limiting Speed - Grease [rpm]
850
Limiting Speed - Oil [rpm]
1300
