51414
51414

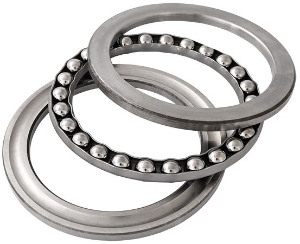

Single Direction Thrust Ball Bearings. 70mm Bore.
Product specifications
Bore Diameter [d]
70
Diameter [A]
150
Bore Diameter [d1]
73
Diameter [A1]
150
Dimension [T]
60
Dimension [r] Min.
2
Diameter [da] Min.
118
Diameter [Da] Max.
102
Dimension [ra] Max.
2
Mass [kg]
5.05
Dynamic Load Rating [N]
252000
Static Load Rating [N]
555000
Limiting Speed - Grease [rpm]
1000
Limiting Speed - Oil [rpm]
1500
Specifications
Overview
Product specifications
Bore Diameter [d]
70
Diameter [A]
150
Bore Diameter [d1]
73
Diameter [A1]
150
Dimension [T]
60
Dimension [r] Min.
2
Diameter [da] Min.
118
Diameter [Da] Max.
102
Dimension [ra] Max.
2
Mass [kg]
5.05
Dynamic Load Rating [N]
252000
Static Load Rating [N]
555000
Limiting Speed - Grease [rpm]
1000
Limiting Speed - Oil [rpm]
1500
