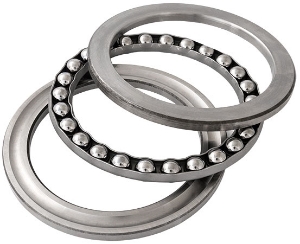

Single Direction Thrust Ball Bearings. 65mm Bore.

Product specifications

Bore Diameter [d]65
Diameter [A]140
Bore Diameter [d1]68
Diameter [A1]140
Dimension [T]56
Dimension [r] Min.2
Diameter [da] Min.110
Diameter [Da] Max.95
Dimension [ra] Max.2
Mass [kg]4.1
Dynamic Load Rating [N]234000
Static Load Rating [N]495000
Limiting Speed - Grease [rpm]1100
Limiting Speed - Oil [rpm]1700
