51312

51312

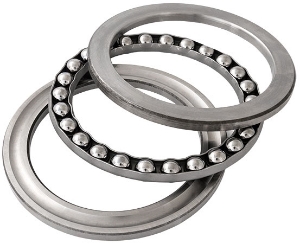

Single Direction Thrust Ball Bearings. 60mm Bore.

Product specifications

Bore Diameter [d]60
Diameter [A]110
Bore Diameter [d1]62
Diameter [A1]110
Dimension [T]35
Dimension [r] Min.1.1
Diameter [da] Min.90
Diameter [Da] Max.80
Dimension [ra] Max.1
Mass [kg]1.4
Dynamic Load Rating [N]119000
Static Load Rating [N]263000
Limiting Speed - Grease [rpm]1600
Limiting Speed - Oil [rpm]2400
