51310
51310

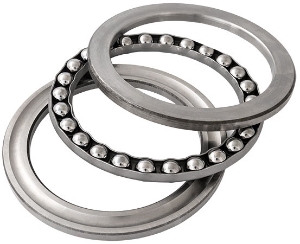

Single Direction Thrust Ball Bearings. 50mm Bore.
Product specifications
Bore Diameter [d]
50
Diameter [A]
95
Bore Diameter [d1]
52
Diameter [A1]
95
Dimension [T]
31
Dimension [r] Min.
1.1
Diameter [da] Min.
77
Diameter [Da] Max.
68
Dimension [ra] Max.
1
Mass [kg]
0.931
Dynamic Load Rating [N]
97500
Static Load Rating [N]
202000
Limiting Speed - Grease [rpm]
1800
Limiting Speed - Oil [rpm]
2800
