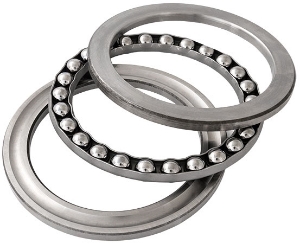

51209
51209
Single Direction Thrust Ball Bearings. 45mm Bore.
Product specifications
Bore Diameter [d]
45
Diameter [A]
73
Bore Diameter [d1]
47
Diameter [A1]
73
Dimension [T]
20
Dimension [r] Min.
1
Diameter [da] Min.
62
Diameter [Da] Max.
56
Dimension [ra] Max.
1
Mass [kg]
0.31
Dynamic Load Rating [N]
48000
Static Load Rating [N]
105000
Limiting Speed - Grease [rpm]
2600
Limiting Speed - Oil [rpm]
4000
