51206
51206

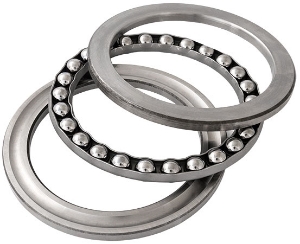

Single Direction Thrust Ball Bearings. 30mm Bore.
Product specifications
Bore Diameter [d]
30
Diameter [A]
52
Bore Diameter [d1]
32
Diameter [A1]
52
Dimension [T]
16
Dimension [r] Min.
0.6
Diameter [da] Min.
43
Diameter [Da] Max.
39
Dimension [ra] Max.
0.6
Mass [kg]
0.137
Dynamic Load Rating [N]
29500
Static Load Rating [N]
58000
Limiting Speed - Grease [rpm]
3400
Limiting Speed - Oil [rpm]
5300
