BH0202-94-6003

Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer

BH0202-94-6003

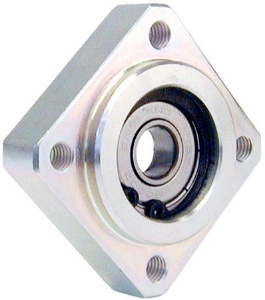

Steel Single Housed Bearing Assembly with Circlip Retainer. Square Style. 3 - 30mm Bores.
Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 080 M40 (ck40)
Bore Diameter [d]17
Diameter [D]35 x 17 deep
Diameter [C]33
Dimension [L]25
Diameter [A]94
Diameter [H] PCD78
Diameter [H]15 x 8.5 deep (M8 Capscrew)
Thread [d]M10
Diameter [J]66 x 6
Dimension [F]7
Dimension [K]77 Sq.
Bearing Size6003ZZ (17 x 35 x 10)

Product specifications

MaterialSteel 080 M40 (ck40)
Bore Diameter [d]17
Diameter [D]35 x 17 deep
Diameter [C]33
Dimension [L]25
Diameter [A]94
Diameter [H] PCD78
Diameter [H]15 x 8.5 deep (M8 Capscrew)
Thread [d]M10
Diameter [J]66 x 6
Dimension [F]7
Dimension [K]77 Sq.
Bearing Size6003ZZ (17 x 35 x 10)
