BH0202-40-625

Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer

BH0202-40-625

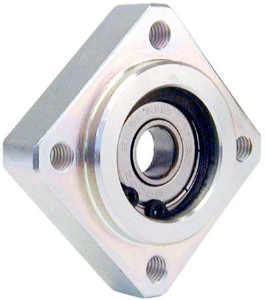

Steel Single Housed Bearing Assembly with Circlip Retainer. Square Style. 3 - 30mm Bores.
Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialSteel 080 M40 (ck40)
Bore Diameter [d]5
Diameter [D]16 x 8 deep
Diameter [C]14
Dimension [L]11
Diameter [A]40
Diameter [H] PCD30
Diameter [H]7.5 x 4.5 deep (M4 Capscrew)
Thread [d]M5
Diameter [J]22 x 3
Dimension [F]3
Dimension [K]30 Sq.
Bearing Size625ZZ (5 x 16 x 5)

Product specifications

MaterialSteel 080 M40 (ck40)
Bore Diameter [d]5
Diameter [D]16 x 8 deep
Diameter [C]14
Dimension [L]11
Diameter [A]40
Diameter [H] PCD30
Diameter [H]7.5 x 4.5 deep (M4 Capscrew)
Thread [d]M5
Diameter [J]22 x 3
Dimension [F]3
Dimension [K]30 Sq.
Bearing Size625ZZ (5 x 16 x 5)
