BH0202-40-606

Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer

BH0202-40-606

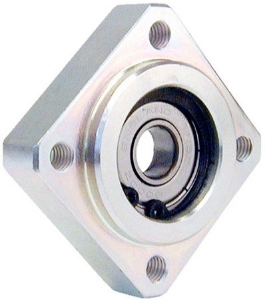

Steel Single Housed Bearing Assembly with Circlip Retainer. Square Style. 3 - 30mm Bores.
Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer Bearing Assemblies from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material Steel 080 M40 (ck40)
Bore Diameter [d] 6
Diameter [D] 17 x 9 deep
Diameter [C] 15
Dimension [L] 11
Diameter [A] 40
Diameter [H] PCD 30
Diameter [H] 7.5 x 4.5 deep (M4 Capscrew)
Thread [d] M5
Diameter [J] 22 x 3
Dimension [F] 3
Dimension [K] 30 Sq.
Bearing Size 606ZZ (6 x 17 x 6)

Product specifications

Material Steel 080 M40 (ck40)
Bore Diameter [d] 6
Diameter [D] 17 x 9 deep
Diameter [C] 15
Dimension [L] 11
Diameter [A] 40
Diameter [H] PCD 30
Diameter [H] 7.5 x 4.5 deep (M4 Capscrew)
Thread [d] M5
Diameter [J] 22 x 3
Dimension [F] 3
Dimension [K] 30 Sq.
Bearing Size 606ZZ (6 x 17 x 6)
