KMK15

Ondrives Precision Gears and Gearboxes Part number KMK15

KMK15

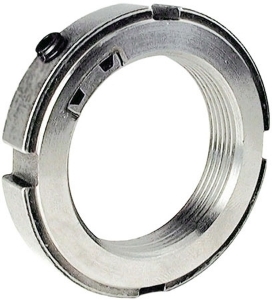

Simple Mounting Bearing Locknut, M75
Ondrives Precision Gears and Gearboxes Part number KMK15 Ondrives Precision Gears and Gearboxes Part number KMK15 Ondrives Precision Gears and Gearboxes Part number KMK15

Product specifications

Thread [M x P]M75 x 2
Diameter [D]98
Diameter [D1]91
Dimension [k] [H]14
Dimension [S]8
Dimension [T]3.5
Static Axial Load Carrying Capacity [kN]134
Mass [kg]0.33
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18

Product specifications

Thread [M x P]M75 x 2
Diameter [D]98
Diameter [D1]91
Dimension [k] [H]14
Dimension [S]8
Dimension [T]3.5
Static Axial Load Carrying Capacity [kN]134
Mass [kg]0.33
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18
