SHST8-30

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHST8-30

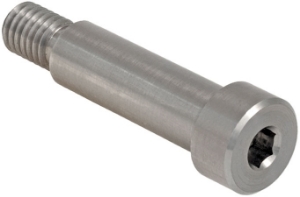

6AL-4V Titanium Precision Shoulder Screw. Hexagon Socket Head. Ø10 x 30mm Shoulder. M8 x 12mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialTi-6AI-4V Grade 5 (UNS R56400) Titanium
Material Tensile Strength: min N/mm²1,100
Thread [d]M8
Diameter [ds] +0.005/-0.0259.987
Dimension [L] +0.05/-030.013
Diameter [Dk]14
Dimension [k] [H]7
Dimension [b]12
Dimension [s]5
Dimension [t]4

Product specifications

MaterialTi-6AI-4V Grade 5 (UNS R56400) Titanium
Material Tensile Strength: min N/mm²1,100
Thread [d]M8
Diameter [ds] +0.005/-0.0259.987
Dimension [L] +0.05/-030.013
Diameter [Dk]14
Dimension [k] [H]7
Dimension [b]12
Dimension [s]5
Dimension [t]4
