SHST4-16

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHST4-16

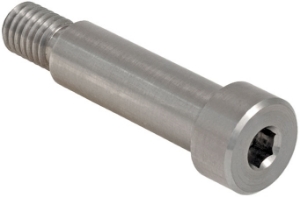

6AL-4V Titanium Precision Shoulder Screw. Hexagon Socket Head. Ø5 x 16mm Shoulder. M4 x 5mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialTi-6AI-4V Grade 5 (UNS R56400) Titanium
Thread [d]M4
Material Tensile Strength: min N/mm²1,100
Diameter [ds] +0.005/-0.0254.987
Dimension [L] +0.05/-016.013
Diameter [Dk]8
Dimension [k] [H]4
Dimension [b]5
Dimension [s]2.5
Dimension [t]0.08

Product specifications

MaterialTi-6AI-4V Grade 5 (UNS R56400) Titanium
Thread [d]M4
Material Tensile Strength: min N/mm²1,100
Diameter [ds] +0.005/-0.0254.987
Dimension [L] +0.05/-016.013
Diameter [Dk]8
Dimension [k] [H]4
Dimension [b]5
Dimension [s]2.5
Dimension [t]0.08
