SHSS3-8

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHSS3-8

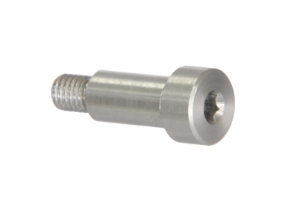

AISI 416 (EN 1.4005) Stainless Steel Precision Shoulder Screw. Hexagon Socket Head. Ø4 x 8mm Shoulder. M3 x 4mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 416 (EN 1.4005) Stainless Steel
Material Tensile Strength: min N/mm²650 (26-32Hrc)
Thread [d]M3
Diameter [ds] +0.005/-0.0253.987
Dimension [L] +0.05/-08.013
Diameter [Dk]6
Dimension [k] [H]3
Dimension [b]4
Dimension [s]2
Dimension [t]1.6

Product specifications

MaterialAISI 416 (EN 1.4005) Stainless Steel
Material Tensile Strength: min N/mm²650 (26-32Hrc)
Thread [d]M3
Diameter [ds] +0.005/-0.0253.987
Dimension [L] +0.05/-08.013
Diameter [Dk]6
Dimension [k] [H]3
Dimension [b]4
Dimension [s]2
Dimension [t]1.6
