SHSS10-25

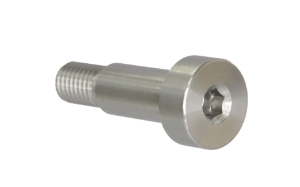

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHSS10-25

AISI 416 (EN 1.4005) Stainless Steel Precision Shoulder Screw. Hexagon Socket Head. Ø12 x 25mm Shoulder. M10 x 16mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 416 (EN 1.4005) Stainless Steel
Thread [d]M10
Material Tensile Strength: min N/mm²650 (26-32Hrc)
Diameter [ds] +0.005/-0.02511.987
Dimension [L] +0.05/-025.013
Diameter [Dk]20
Dimension [k] [H]8
Dimension [b]16
Dimension [s]6
Dimension [t]4.8

Product specifications

MaterialAISI 416 (EN 1.4005) Stainless Steel
Thread [d]M10
Material Tensile Strength: min N/mm²650 (26-32Hrc)
Diameter [ds] +0.005/-0.02511.987
Dimension [L] +0.05/-025.013
Diameter [Dk]20
Dimension [k] [H]8
Dimension [b]16
Dimension [s]6
Dimension [t]4.8
