SHS5-4

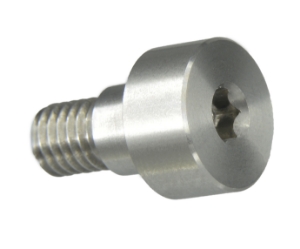

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHS5-4

AISI 303 (EN 1.4305) Stainless Steel. Precision Shoulder Screws. Hexagon Socket Head. Ø6 x 4mm Shoulder. M5 x 6mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Thread [d]M5
Material Tensile Strength: min N/mm²550
Diameter [ds] +0.005/-0.0255.987
Dimension [L] +0.05/-04.013
Diameter [Dk]10
Dimension [k] [H]5
Dimension [b]6
Dimension [s]3
Dimension [t]2.4

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Thread [d]M5
Material Tensile Strength: min N/mm²550
Diameter [ds] +0.005/-0.0255.987
Dimension [L] +0.05/-04.013
Diameter [Dk]10
Dimension [k] [H]5
Dimension [b]6
Dimension [s]3
Dimension [t]2.4
