SHS316-3-20
SHS316-3-20

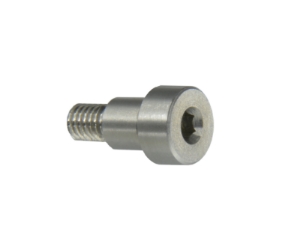

AISI 316 (EN 1.4401) Stainless Steel. Precision Shoulder Screws. Hexagon Socket Head. Ø4 x 20mm Shoulder. M3 x 4mm Thread.
Product specifications
Material
AISI 316 (EN 1.4401) Stainless Steel
Material Tensile Strength: min N/mm²
500
Thread [d]
M3
Diameter [ds] +0.005/-0.025
3.987
Dimension [L] +0.05/-0
20.013
Diameter [Dk]
6
Dimension [k] [H]
3
Dimension [b]
4
Dimension [s]
2
Dimension [t]
1.6
Specifications
Product PDF
CAD
Overview
Product specifications
Material
AISI 316 (EN 1.4401) Stainless Steel
Material Tensile Strength: min N/mm²
500
Thread [d]
M3
Diameter [ds] +0.005/-0.025
3.987
Dimension [L] +0.05/-0
20.013
Diameter [Dk]
6
Dimension [k] [H]
3
Dimension [b]
4
Dimension [s]
2
Dimension [t]
1.6
