SHS316-10-40

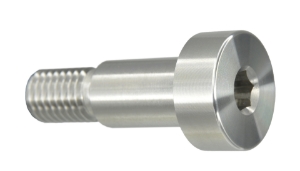

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHS316-10-40

AISI 316 (EN 1.4401) Stainless Steel. Precision Shoulder Screws. Hexagon Socket Head. Ø12 x 40mm Shoulder. M10 x 16mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Material Tensile Strength: min N/mm²500
Thread [d]M10
Diameter [ds] +0.005/-0.02511.987
Dimension [L] +0.05/-040.013
Diameter [Dk]20
Dimension [k] [H]8
Dimension [b]16
Dimension [s]6
Dimension [t]4.8

Product specifications

MaterialAISI 316 (EN 1.4401) Stainless Steel
Material Tensile Strength: min N/mm²500
Thread [d]M10
Diameter [ds] +0.005/-0.02511.987
Dimension [L] +0.05/-040.013
Diameter [Dk]20
Dimension [k] [H]8
Dimension [b]16
Dimension [s]6
Dimension [t]4.8
