SHS2-2

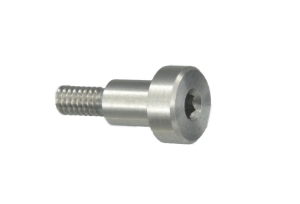

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHS2-2

AISI 303 (EN 1.4305) Stainless Steel. Precision Shoulder Screws. Hexagon Socket Head. Ø3 x 2mm Shoulder. M2 x 4mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Material Tensile Strength: min N/mm²550
Thread [d]M2
Diameter [ds] +0.005/-0.0252.987
Dimension [L] +0.05/-02.013
Diameter [Dk]5
Dimension [k] [H]2
Dimension [b]4
Dimension [s]1.5
Dimension [t]1

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Material Tensile Strength: min N/mm²550
Thread [d]M2
Diameter [ds] +0.005/-0.0252.987
Dimension [L] +0.05/-02.013
Diameter [Dk]5
Dimension [k] [H]2
Dimension [b]4
Dimension [s]1.5
Dimension [t]1
