SHS17PH8-60

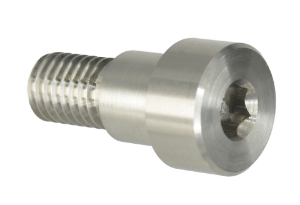

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHS17PH8-60

17-4PH H1025 38HRC Stainless Steel Shoulder Screws. Hexagon Socket Head. Ø10 x 60mm Shoulder. M8 x 12mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Material Tensile Strength: min N/mm²1,070 (38Hrc)
Thread [d]M8
Diameter [ds] +0.005/-0.0259.987
Dimension [L] +0.05/-060.013
Diameter [Dk]14
Dimension [k] [H]7
Dimension [b]12
Dimension [s]5
Dimension [t]4

Product specifications

Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Material Tensile Strength: min N/mm²1,070 (38Hrc)
Thread [d]M8
Diameter [ds] +0.005/-0.0259.987
Dimension [L] +0.05/-060.013
Diameter [Dk]14
Dimension [k] [H]7
Dimension [b]12
Dimension [s]5
Dimension [t]4
