SHS17PH6-6
SHS17PH6-6

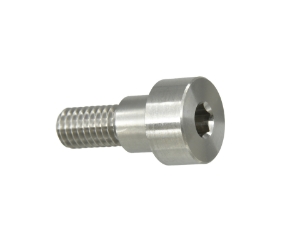

17-4PH H1025 38HRC Stainless Steel Shoulder Screws. Hexagon Socket Head. Ø8 x 6mm Shoulder. M6 x 11mm Thread.
Product specifications
Material
17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Material Tensile Strength: min N/mm²
1,070 (38Hrc)
Thread [d]
M6
Diameter [ds] +0.005/-0.025
7.987
Dimension [L] +0.05/-0
6.013
Diameter [Dk]
12
Dimension [k] [H]
6
Dimension [b]
11
Dimension [s]
4
Dimension [t]
3.2
Specifications
Product PDF
CAD
Overview
Product specifications
Material
17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Material Tensile Strength: min N/mm²
1,070 (38Hrc)
Thread [d]
M6
Diameter [ds] +0.005/-0.025
7.987
Dimension [L] +0.05/-0
6.013
Diameter [Dk]
12
Dimension [k] [H]
6
Dimension [b]
11
Dimension [s]
4
Dimension [t]
3.2
Information
Quality Certificate - AS9100D (EN9100:2018, JISQ9100:2016, KS Q 9100:2018), ISO9001:2015
