SHS12-50

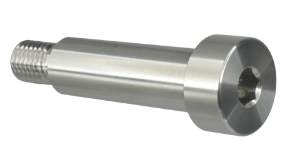

Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

SHS12-50

AISI 303 (EN 1.4305) Stainless Steel. Precision Shoulder Screws. Hexagon Socket Head. Ø16 x 50mm Shoulder. M12 x 18mm Thread.
Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer Stainless Steel Socket Head Shoulder Screw Threaded Fastener from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Material Tensile Strength: min N/mm²550
Thread [d]M12
Diameter [ds] +0.005/-0.02515.979
Diameter [Dk]24
Dimension [L] +0.05/-050.013
Dimension [k] [H]11
Dimension [b]18
Dimension [s]8
Dimension [t]6.6

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Material Tensile Strength: min N/mm²550
Thread [d]M12
Diameter [ds] +0.005/-0.02515.979
Diameter [Dk]24
Dimension [L] +0.05/-050.013
Dimension [k] [H]11
Dimension [b]18
Dimension [s]8
Dimension [t]6.6
