WU50-016T1
WU50-016T1

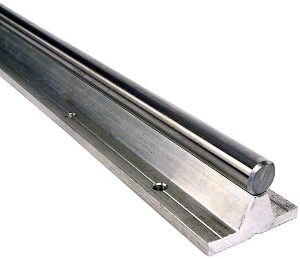

Aluminium Shaft Support Rail for Open Type Ball Bushings (Support Only), Drilled with T1 Hole Spacing
Product specifications
Dimension [A]
45
Dimension [M] -0.3
3.5
Dimension [B]
13
Dimension [a°]
50
Dimension [V]
5
Dimension [D]
9.5
Dimension [J]
5.5
Dimension [O]
5.5
Bolt
M5x20
Dimension [U]
5.5
Dimension [E]
33
Hole Spacing
100
Length
600
Specifications
Overview
Product specifications
Dimension [A]
45
Dimension [M] -0.3
3.5
Dimension [B]
13
Dimension [a°]
50
Dimension [V]
5
Dimension [D]
9.5
Dimension [J]
5.5
Dimension [O]
5.5
Bolt
M5x20
Dimension [U]
5.5
Dimension [E]
33
Hole Spacing
100
Length
600
