  2. RUPHG : 3.0 Mod Ground Helical Pinions

RUPHG3.0-80LPH-K

Ondrives Precision Gears and Gearboxes Part number RUPHG3.0-80LPH-K

RUPHG3.0-80LPH-K

3.0 Module 17-4PH Stainless Steel (38-40HRC) 19°31'42" Left Hand Helix Ground Rack Helical Pinion 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)

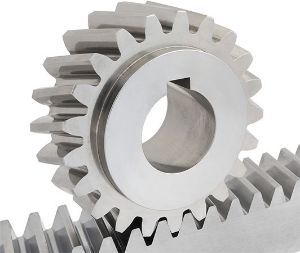

Ondrives Precision Gears and Gearboxes Part number RUPHG3.0-80LPH-K Ondrives Precision Gears and Gearboxes Part number RUPHG3.0-80LPH-K

Product specifications

Mating Rack1HR16R030...H
Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Normal Module mn3
Gear Tooth TypeSpur Ground
Pressure Angle20°
No. of Teeth [z]80
Ref. Diameter [d]254.648
Tip Diameter [da]260.648
Bore Diameter [di] H630
Keyway [K] DIN 6885-1 Js98 x 7
Hub Diameter [BD] h7200
Hub Length [L]5
Face Width [F]29
Backlash (mm) jt.i (min)0.028
Backlash (mm) jt.e (max)0.114
Inertia [I] kgm²1.05 x 10-1
Mass kg13.661

Product specifications

Mating Rack1HR16R030...H
Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Normal Module mn3
Gear Tooth TypeSpur Ground
Pressure Angle20°
No. of Teeth [z]80
Ref. Diameter [d]254.648
Tip Diameter [da]260.648
Bore Diameter [di] H630
Keyway [K] DIN 6885-1 Js98 x 7
Hub Diameter [BD] h7200
Hub Length [L]5
Face Width [F]29
Backlash (mm) jt.i (min)0.028
Backlash (mm) jt.e (max)0.114
Inertia [I] kgm²1.05 x 10-1
Mass kg13.661
