RUPHG3.0-60LH-K

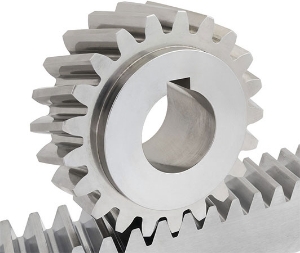

3.0 Module Case Hardened 805M20 (58-62HRC) 19°31'42" Left Hand Helix Ground Rack Helical Pinion 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)

Product specifications

Mating Rack	1HR16R030...H
Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN3967	4f24
Normal Module mn	3
Gear Tooth Type	Spur Ground
Pressure Angle	20°
No. of Teeth [z]	60
Ref. Diameter [d]	190.986
Bore Diameter [di] H6	20
Tip Diameter [da]	196.986
Keyway [K] DIN 6885-1 Js9	6 x 6
Hub Diameter [BD] h7	120
Hub Length [L]	5
Face Width [F]	29
Backlash (mm) jt.i (min)	0.028
Backlash (mm) jt.e (max)	0.114
Inertia [I] kgm²	3.11 x 10-2
Mass kg	7.27

Mating Rack	1HR16R030...H
Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN3967	4f24
Normal Module mn	3
Gear Tooth Type	Spur Ground
Pressure Angle	20°
No. of Teeth [z]	60
Ref. Diameter [d]	190.986
Bore Diameter [di] H6	20
Tip Diameter [da]	196.986
Keyway [K] DIN 6885-1 Js9	6 x 6
Hub Diameter [BD] h7	120
Hub Length [L]	5
Face Width [F]	29
Backlash (mm) jt.i (min)	0.028
Backlash (mm) jt.e (max)	0.114
Inertia [I] kgm²	3.11 x 10-2
Mass kg	7.27
